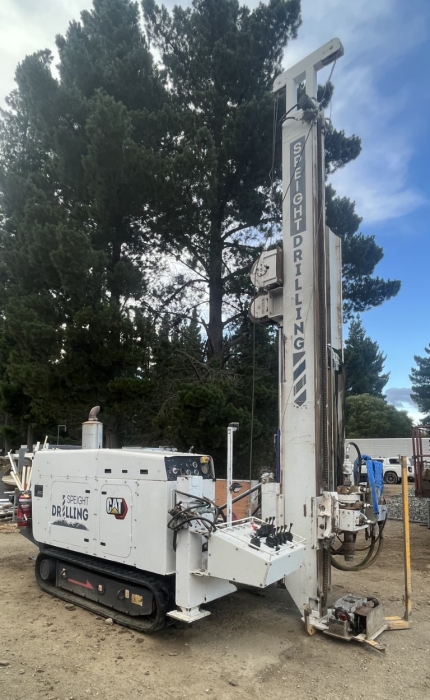

ZX180 drill rig (track mounted)
The ZX180 Drill Rig is our all purpose diamond drilling rig, mounted on a rubber track unit and includes safety guards and emergency stop buttons. A robust drilling machine which is easy to operate and maintain while working on remote job site.
It has an option of 2 separate mast set ups; a short 2.8 m for more restricted access areas or a standard 5 metre mast.
The rotation torque of the XZ180 drill head has an optional capacity of 38000Nm.
Rig Capabilities;
- Wireline Coring (Rotary Core)
- Rotary Wash (2inch - 8inch)
- NQ, HQ and PQ Drilling & Sampling
- SPT Sampling (with certified SPT Hammers)
- Push Tubes (2, 2.5 and 3 inch)
- Direct Push Sampling
- Monitoring and/or Vibrating Wire Piezometers
- Inclinometer
- Test Pumping
- Packer Testing (NQ and HQ size)
- Cementing
- High Pressure Grout Injection
- Piling
Depth Capacity Coring (Wire or Conventional);
- NQ 350m
- HQ 280m
- PQ 180m
