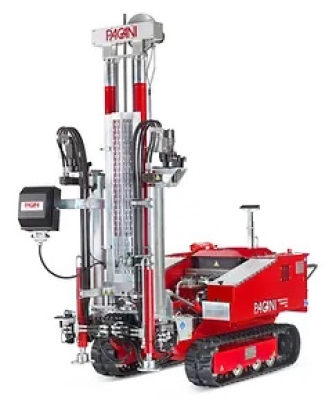

PAGANI TG63-150 CPT RIG

Tests:  CPTm, CPTu, DPSH, DPH, DPM

Weight:  1100 kg - 2425 pounds

​Maximum thrust capacity:  150 kN - 33721 pounds

Maximum extraction capacity:  160 kN - 35969 pounds

Speed of the test:  2 cm/s - 0,065 foot/s

Carriage:  Hydrostatic operating tracks with planetary reduction gear and negative brake
Speed 2 km/hour - 1,24 miles/hour
Max. forward slope 25%
Max. lateral slope 10%

Anchoring system:  2, one for each side of the penetrometer with gear motor
Torque: 160 kgm - 13887 inch-pound - 1570 Nm
Modular helical rod

Stabilizers:  3, with hydraulic action with articulated feet

CONE TECHNICAL SPECIFICATIONS:
