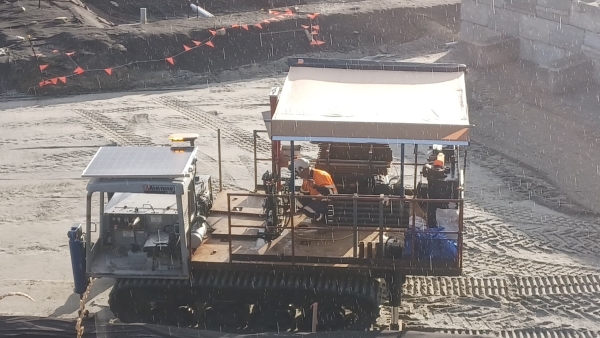

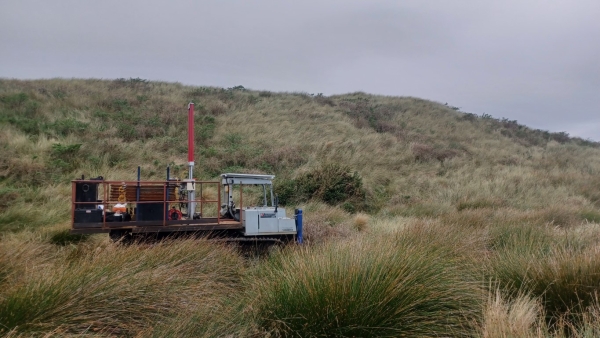

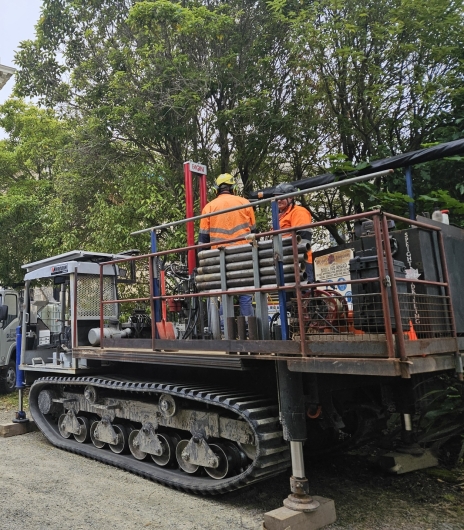

PAGANI 150 Morooka cpt RIG
Tests: CPTm, CPTu, DPSH, DPH, DPM
Weight:
Maximum thrust capacity: 150 kN - 33721 pounds
Maximum extraction capacity: 160 kN - 35969 pounds
Speed of the test: 2 cm/s - 0,065 foot/s
Carriage: Hydrostatic operating tracks.
Stabilizers: 4, with hydraulic action with articulated feet
CONE TECHNICAL SPECIFICATIONS:
| SENSOR | MAX RANGE | RESOLUTION | ACCURACY |
| QC | 50-75MPa | 24 bit | 0.005 MPa |
| FS | 1400kPa | 24 bit | 0.04 kPa |
| U2 | 2000kPa | 24 bit | 0.04 kPa |
| TILT | 0° - 15° | 12 bit | 0.5° |
